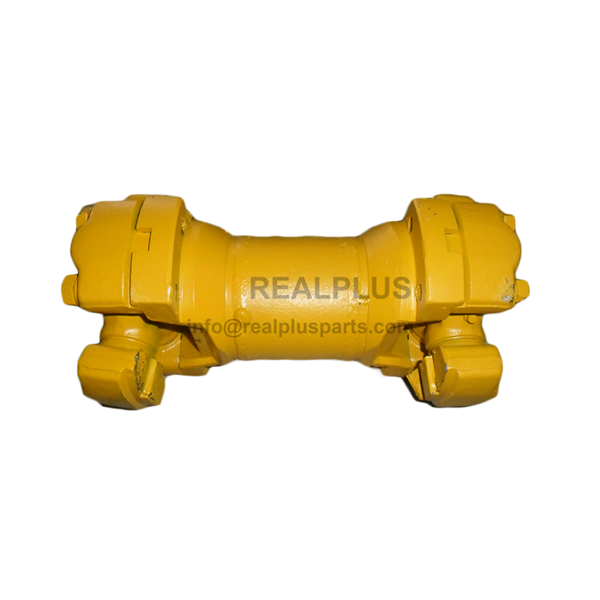

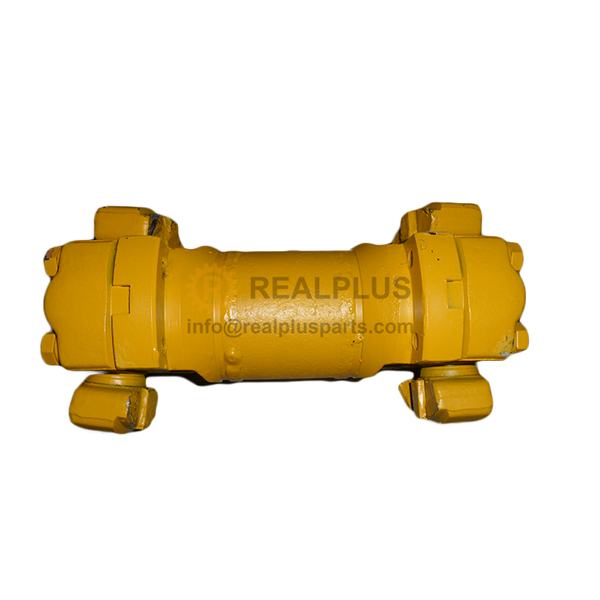

Universal joint assembly for bulldozer spare parts

We can supply most of the Chinese brand. SHANTUI Bulldozer SD16 Universal joint assembly ， SHANTUI Bulldozer SD22 Universal joint assembly , SHANTUI Bulldozer SD32 Universal joint assembly ,
HBXG Bulldozer SD7N Universal joint assembly ，HBXG Bulldozer T140 Universal joint assembly , HBXG Bulldozer TY165 Universal joint assembly , HBXG Bulldozer TY230 Universal joint assembly , HBXG Bulldozer SD6N Universal joint assembly , HBXG Bulldozer SD7N Universal joint assembly , HBXG Bulldozer SD8N Universal joint assembly , HBXG Bulldozer SD9N Universal joint assembly ,
XCMG Bulldozer TY160 Universal joint assembly ，XCMG Bulldozer TY230 Universal joint assembly ，XCMG Bulldozer TY320 Universal joint assembly ，SEM Bulldozer SEM816 Universal joint assembly ，SEM Bulldozer SEM822 Universal joint assembly
LIUGONG Bulldozer B110 Universal joint assembly ，LIUGONG Bulldozer B160 Universal joint assembly ，LIUGONG Bulldozer B230 Universal joint assembly ，LIUGONG Bulldozer B320 Universal joint assembly ，PENGPU Bulldozer PD140 Universal joint assembly ，PENGPU Bulldozer PD165 Universal joint assembly ，PENGPU Bulldozer PD220 Universal joint assembly ,
PENGPU Bulldozer PD320 Universal joint assembly , PENGPU Bulldozer PD410 Universal joint assembly , ZOOMLION Bulldozer ZD160 Universal joint assembly ，ZOOMLION Bulldozer ZD220 Universal joint assembly ，ZOOMLION Bulldozer ZD230 Universal joint assembly , DADI Bulldozer MD32 Universal joint assembly , DADI Bulldozer MD23 Universal joint assembly , DADI Bulldozer MD23 Universal joint assembly , DADI Bulldozer MD16 Universal joint assembly

Because there are many kinds of accessories, we can't display them all on the website. Please feel free to contact us for specific accessories.

The universal joint is a part of the universal transmission device to realize the variable Angle power transmission. It is used to change the position of the transmission axis direction. It is the "joint" part of the universal transmission device of the driving system. The combination of universal joint and transmission shaft is called universal joint transmission device.

Advantage:

1. We supply both original and aftermarket products for you

2. From the manufacturer to the customer directly, saving your cost
3. Stable stock for normal parts
4. In Time Delivery Time, with competitive shipping cost

5. Professional and on time after service

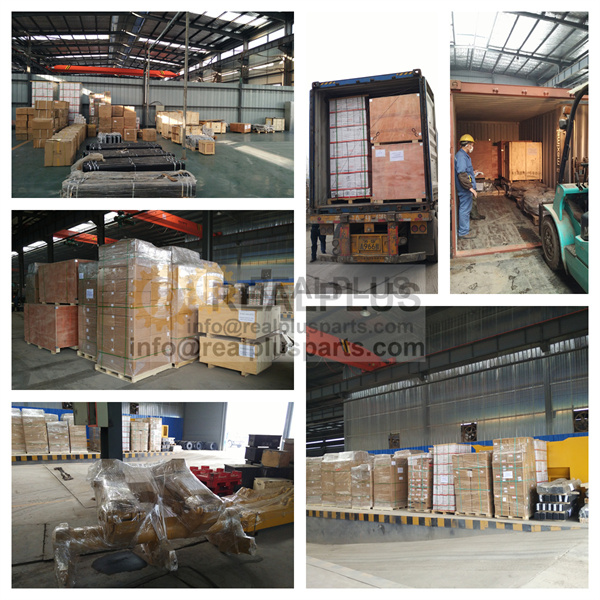

Packing

Carton Boxes, or according to clients’ request.

Description

Disassembly method of ball universal joint

1. Remove the half shaft lock nut.

2. Support the car on the lift and lift the car to an appropriate height.

3. Loosen the six fixing bolts of the inner ball cage.

4. Remove the control arm ball head from the steering knuckle.

5. Remove the half shaft from one side of the outer ball cage, and avoid damaging the dust cover of the half shaft when removing it.

6. Disassemble the half shaft and the ball cage: 1) Loosen the clamps on both sides of the ball cage dust cover, remove the ball cage dust cover and check whether the dust cover is damaged or aging; 2) Remove the circlip: card If the spring is installed on the outside of the cage, use external circlip pliers to expand the circlip to remove the outer cage; 3) If the circlip is installed on the inside of the cage, use a hammer to hit the outer race of the cage to make the cage and the half shaft Disengaged.

7. Disassemble the ball cage: Hit the inner seat ring of the ball cage with a copper hammer to make the ball cage and the inner seat ring perpendicular to the outer seat ring, and remove the inner seat ring, the ball cage and the steel ball.

8. Inspection of the ball cage assembly: clean the inner and outer races and steel balls of the ball cage, and check the wear of the inner race, the ball cage, and the outer race. If there are grooves, peeling, spots, etc., replace them. Ball cage assembly.
